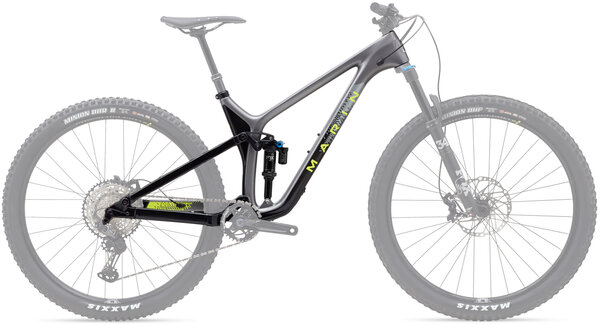

Marin Rift Zone Carbon Frame Kit

Marin Rift Zone Carbon Frame Kit
$2,300.00
Color:
Gloss Carbon/Dark Charcoal/Hi-Vis Yellow
Please select options
This item is not permitted to be shipped, however it can be purchased online and picked up at your convenience.

Details

The Rift Zone is our most speed-oriented MultiTrac bike, created for the rider looking for the speed and rollover capabilities of 29" wheels in a trail-capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed—and more fun while chasing seconds.

bike frame with labeled dimensions
Bike Sizes:
SMLXL
A. Reach 430mm 455mm 480mm 515mm
B. Stack 602.6mm 607.15mm 611.7mm 616.25mm
C. Standover 677.41mm 683.97mm 694.16mm 697.39mm
D. Effective Top Tube 580.24mm 606.36mm 632.51mm 668.65mm
E. Head Tube Angle 65.5° 65.5° 65.5° 65.5°
F. Head Tube Length 100mm 105mm 110mm 115mm
G. Seat Tube Angle 76° 76° 76° 76°
H. Seat Tube Length 390mm 400mm 425mm 430mm
I. Bottom Bracket Height 344mm 344mm 344mm 344mm
J. Bottom Bracket Drop 34mm 34mm 34mm 34mm
K. Fork Rake/Offset 44mm 44mm 44mm 44mm
M. Wheelbase 1158.92mm 1186mm 1213mm 1252mm
O. Chainstay Length 425mm 425mm 425mm 425mm

Specs

Frame All New Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29" Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Fork Sold separately
Rear Shock Fox Float DPX2, Performance Series, EVOL Air Spring, 3-Position Compression Adjustment, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom
Headset FSA No 42/47, Sealed Cartridge Bearings, 1 1/8" x 1 1/2"
Accessories & Extras Marin MTB Seat Clamp Bolt Type, Bolt-On Thru-Axle, Downtube and Chainstay Protectors

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Carbon/Dark Charcoal/Hi-Vis Yellow / Small 843346111258 732661001 843346111258
Gloss Carbon/Dark Charcoal/Hi-Vis Yellow / Medium 843346111265 732661002 843346111265
Gloss Carbon/Dark Charcoal/Hi-Vis Yellow / Large 843346111272 732661003 843346111272
Gloss Carbon/Dark Charcoal/Hi-Vis Yellow / X-Large 843346111289 732661004 843346111289
