Details

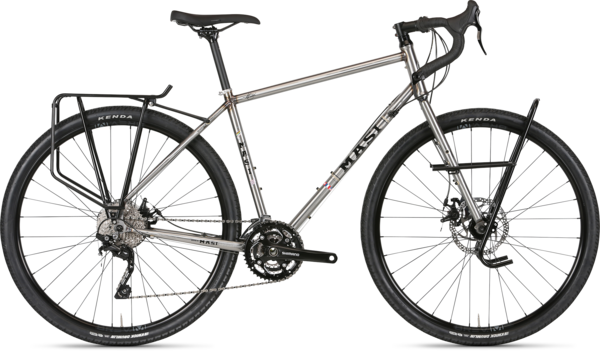

You can't choose your own adventure if your bike doesn't have your back. No worries with the Giramondo, your road ready companion for long days and heavy loads. From its relaxed modern touring geometry, low-rider rack front rack, and heavy-duty rear rack, there is a wealth of practical and intelligent options for the most demanding days in the saddle.
- A modern day touring bike with geometry designed for hours of comfortable riding
- Constructed from double butted cromoly TIG-welded tubing
- Three bottle mounting locations on the main triangle & two on the fork legs mean you'll always stay hydrated
- Tire clearance up 29 x 2.0"
- Tubus Tara low-rider front rack & Tubus Cargo rear rack
- Bar-end shifters for reliability and easy adjustment
- Tubeless-ready Brev. M 700c rims with 23mm internal width
- WTB Volt Sport Saddle
Specs
Frame | Giramondo Adventure | TIG welded double-butted chromoly | 1.125" integrated head tube | 68mm BSA threaded bottom bracket | IS disc brake | QR dropouts |
---|---|
Fork | Giramondo Adventure | chromoly segmented-crown with straight blades | 1.125" steer tube | IS disc mount | rack, fender, and bottle mounts | dynamo wire routing | QR dropouts |
Hubs | Brev M. Disc | Sealed bearings | QR | 6-Bolt | 32H |
Tires | Kenda Quick Drumlin | 700x45c | K-Shield+ puncture protection |
Bottom Bracket | Shimano 68mm threaded BSA |
Crankset | Shimano Deore FC-T551 11s | 44/32/24T chainring | XS - M : 170mm, L - XL : 175mm |
Shifters | MicroShift Barend Shifters |
Front Derailleur | Shimano FD-RX810 | Braze-on with 28.6mm adapter |
Rear Derailleur | Shimano Deore FD-T6000 |
Cassette/Freewheel | Shimano CS-HG500 | 10-spd | 11-36T |
Chain | KMC X10 |
Brakes | TRP Spyre-C disc | Flat mount | Dual piston | 6-bolt rotors, 160mm |
Brake Levers | TRP RRL-A | Ultralight | Non-integrated |
Handlebars | Brev M. compact adventure bend | 31.8mm | 125mm drop | 78mm reach | | 12° flare | XS-M: 42cm, L-XL: 44cm |
Tape/Grips | Masi Gripper Silicone Gel |
Stem | Brev M. Gravel | 3D forged alloy | -7° drop | XS: 60mm, S-M: 70mm, L: 80mm, XL: 90mm |
Headset | Masi by Token 1.5" tapered | Sealed bearing |
Seatpost | Brev M. Alloy | 27.2mm x 330mm | 5mm offset |
Saddle | WTB Volt Sport |
Pedals | Sold separately |
Accessories & Extras | Tubus Tara Lowrider front rack | Tubus Cargo rear rack |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Raw Steel / X-Small | 691840415910 | 41591 | 6918404159108 |
Raw Steel / Small | 691840415927 | 41592 | 6918404159276 |
Raw Steel / Medium | 691840415934 | 41593 | 6918404159344 |
Raw Steel / Large | 691840415941 | 41594 | |
Raw Steel / X-Large | 691840415958 | 41595 |
