Details

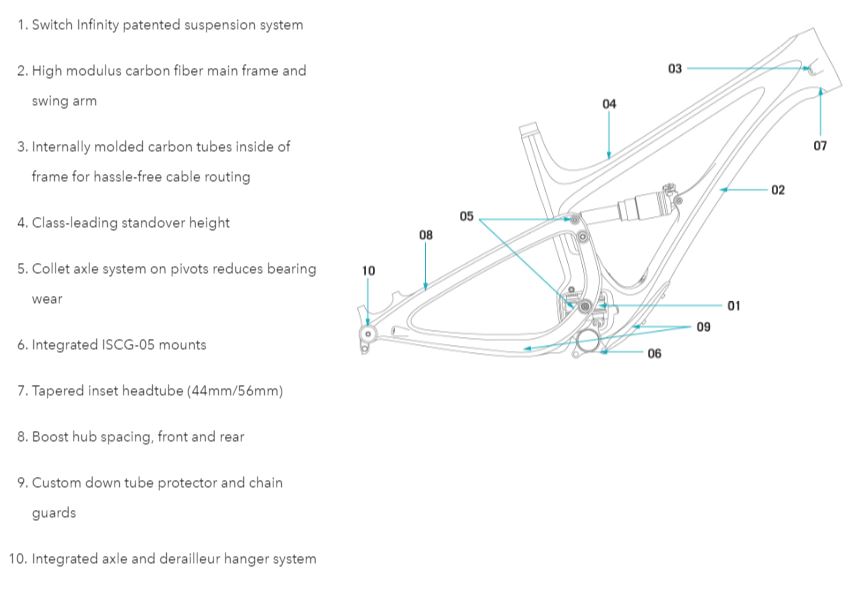

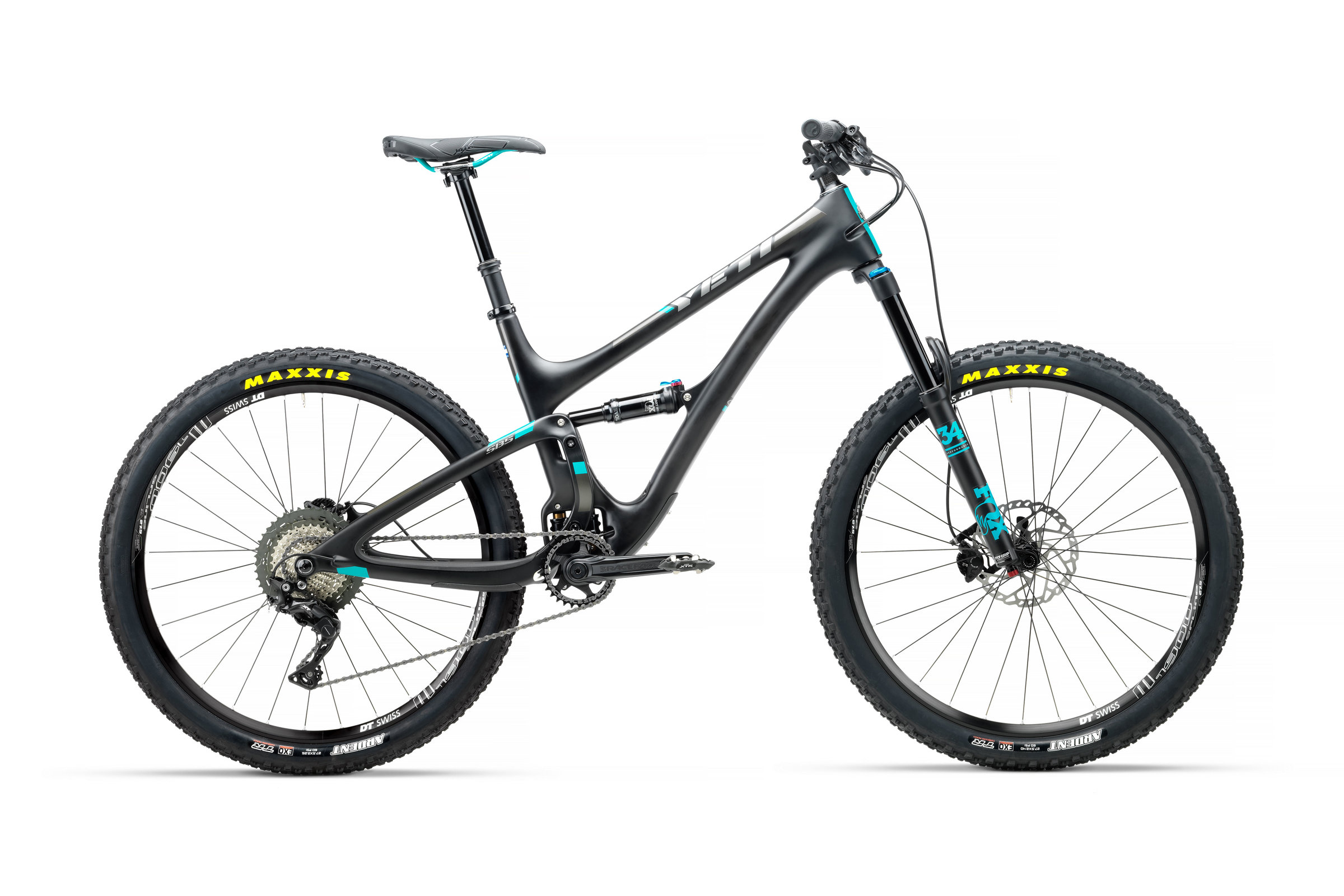

Born from the trails of Colorado, Yeti’s SB5 is everything a trailbike should be — nimble on the climbs and dominant on descents. With a sleek frame design, internal cable routing, Boost spacing, lower stand-over height, and metric suspension all atop Yeti’s Switch Infinity translating pivot, it is the go-to choice for any trail adventure. The SB5 Carbon series frame is 6.27 lbs and preserves Yeti-performance at a more aggressive price point by using a slightly modified carbon material and different layup. Yeti’s Switch Infinity suspension platform and smart frame design grants you the trail-ruling trinity of deep travel support, small bump sensitivity, and rock-solid climbing. Add 5 inches of ample Fox Performance suspension to the equation, and you’ll be nearly unstoppable. Shimano's 11-speed XT/SLX drivetrain puts rapid-fire shifting in your fingertips, and SLX brakes don't disappoint when gravity takes over on chunky descents. 27.5-inch DT Swiss wheels roll on grippy Maxxis Ardent tires for bite over loose and technical terrain, and Fox Transfer dropper post keeps you loose and in control for good old rowdy fun everywhere you ride.
Specs
Frame | SB5 Carbon Series, 127mm travel |
---|---|
Fork | Fox 34 Performance, 150mm travel |
Headset | Cane Creek 40 Inset Taper |
Rear Shock | Fox Performance DPS |
Axles |
Front: 110x15mm Rear: 148x12mm |
Rims/Wheels | DT Swiss M1900 25mm |
Tires |
Maxxis Ardent EXO Tubeless: Front: 27.5x2.4 27.5x2.25 |
Crankset | Race Face Aeffect |
Chainrings | 30T |
Bottom Bracket | Race Face BB92 |
Chain | Shimano SLX |
Rear Derailleur | Shimano XT |
Rear Cogs | Shimano SLX 11-46 |
Shifters | Shimano SLX |
Handlebars | Race Face Evolve 750mm |
Tape/Grips | Ergon GA2 |
Stem | Race Face Ride 60mm |
Brake Levers | Shimano SLX |
Brakes | Shimano SLX, 180/160 rotors |
Saddle | WTB Custom |
Seat Post | Fox Transfer |
* Subject to change without notice.
Videos
Switch Infinity
Fringe of Whitefish
Part Numbers
Option | MPN |
---|---|
Black / X-Small | B18SB5CXSRGDPAXT14500 |
Black / Small | B18SB5CSMRGDPAXT14500 |
Black / Medium | B18SB5CMDRGDPAXT14500 |
Black / Large | B18SB5CLGRGDPAXT14500 |
Black / X-Large | B18SB5CXLRGDPAXT14500 |
Turquoise / X-Small | B18SB5CXSPTUPAXT14500 |
Turquoise / Small | B18SB5CSMPTUPAXT14500 |
Turquoise / Medium | B18SB5CMDPTUPAXT14500 |
Turquoise / Large | B18SB5CLGPTUPAXT14500 |
Turquoise / X-Large | B18SB5CXLPTUPAXT14500 |
