Details

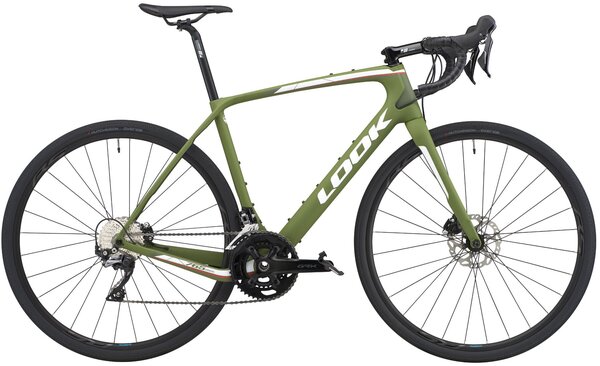

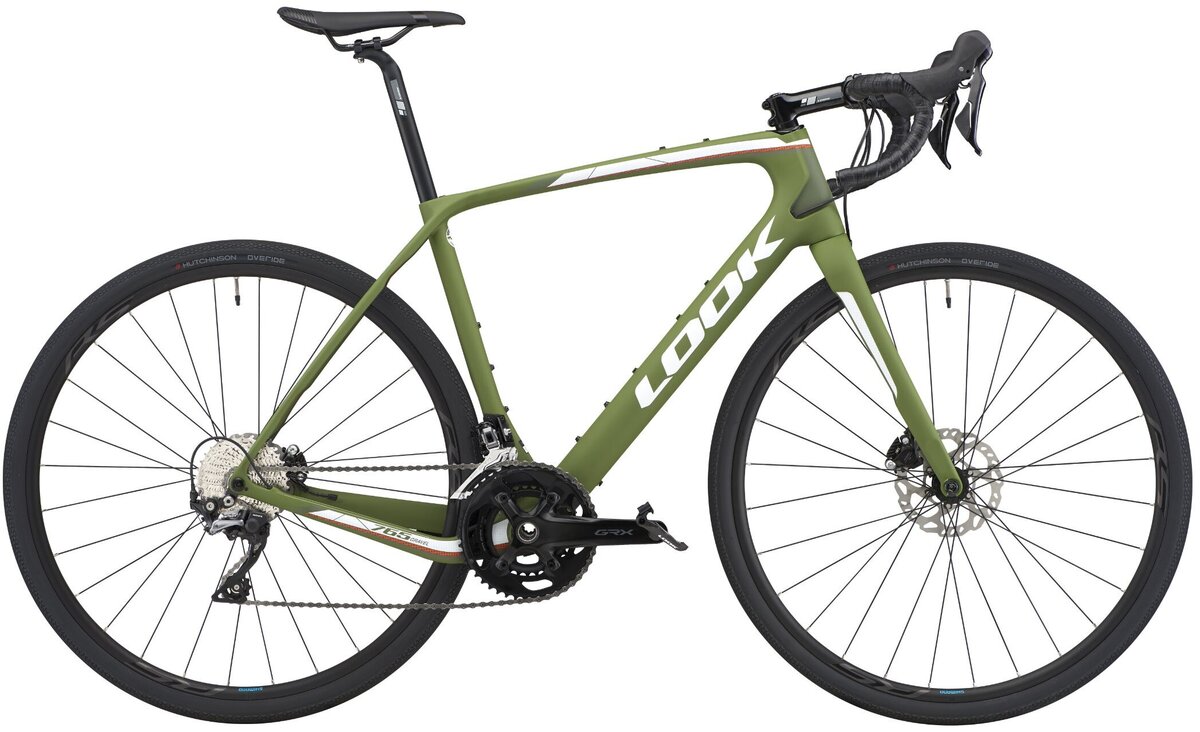

Blend into the landscape with the 765 Gravel. Blast through the countryside with its carbon frame and fork, Shimano GRX groupset, and RS wheels. The Made by LOOK saddle and cockpit handle the rest to take you from the road to the trail and back again without you even realizing it.
- Call on all LOOK's expertise in carbon fiber technologies: designed for ultimate versatility, this bike is equally at ease on tarmac and paths
- Comfort is king: flexible 3D Double Wave seatstays, Made by LOOK saddle and seatpost
- Ride safely with the hydraulic disc brakes: stopping in any weather conditions need no longer be a worry

XS | S | M | L | XL | |
---|---|---|---|---|---|
A. Reach | 355mm | 365mm | 375mm | 385mm | 395mm |
B. Stack | 530mm | 554mm | 578mm | 602mm | 626mm |
C. Standover | 745mm | 765mm | 793mm | 816mm | 843mm |
D. Effective Top Tube | 507mm | 524mm | 552mm | 569mm | 586.5mm |
E. Head Tube Angle | 70.3° | 70.3° | 70.3° | 70.3° | 70.3° |
F. Head Tube Length | 111.5mm | 137mm | 162.5mm | 188mm | 213.5mm |
G. Seat Tube Angle | 74° | 74° | 73° | 73° | 73° |
H. Seat Tube Length | 470mm | 490mm | 510mm | 535mm | 560mm |
J. Bottom Bracket Drop | 70mm | 70mm | 70mm | 70mm | 70mm |
K. Fork Rake/Offset | 50mm | 50mm | 50mm | 50mm | 50mm |
L. Trail | 72mm | 72mm | 72mm | 72mm | 72mm |
N. Front to Center | 577mm | 595.5mm | 614mm | 632.5mm | 651mm |
O. Chainstay Length | 420mm | 420mm | 420mm | 420mm | 420mm |
Fork Length | 395mm | 395mm | 395mm | 395mm | 395mm |
Specs
Frame | UD Carbon-Finish High Modulus Carbon Frame |
---|---|
Fork | Ultra Light High Modulus Carbon Fork |
Wheels | Shimano RS 370 Disc CL (Tubeless) |
Axles | Speed Release Ready 142 x 12 R / 100 x 12 F |
Tires | Hutchinson Overide 700c x 38 Tan Tubetype (bike delivered with inner tube) |
Bottom Bracket | BB 386 / Token Ninja TF 38624 |
Crankset | Shimano GRX 600 46x30T (XS-S 170 mm / M-L 172.5mm / XL 175mm) |
Shifters | Shimano GRX 600 |
Front Derailleur | Shimano GRX 810 |
Rear Derailleur | Shimano GRX 810 |
Cassette/Freewheel | Shimano HG 700 11x34T |
Chain | Shimano HG 601 |
Brakes | Shimano RX 400 Disc Hydraulic Flat Mount |
Rotors | Shimano RR 70 F: 160mm R : 140mm |
Handlebars | LOOK LS2 Alloy Gravel 12° Flare (XS-S 40cm / M-L 42cm / XL 44cm) |
Stem | LOOK LS2 (XS-S-M 90mm / L 100mm / XL 110mm) |
Seatpost | LOOK LS3 Alloy 27.2mm X 350mm |
Saddle | LOOK by San Marco Short Fit Dynamic Narrow Open Fit |
Pedals | Sold separately |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Green Matte / X-Small | 03611720188052 | 24384 | 210000129351 |
Green Matte / Small | 03611720188069 | 24385 | |
Green Matte / Medium | 03611720188076 | 24386 | |
Green Matte / Large | 03611720188083 | 24387 | 210000129352 |
Green Matte / X-Large | 03611720188090 | 24388 |
